Perfil del producto

Appearance design: novel shape, multiple chamfer decorations, simple and beautiful

Plastic shell: injection-molded with ABS material, beautiful and corrosion-resistant

Personalized panel: available in two materials and color combinations of ABS/PC, presenting different matching methods

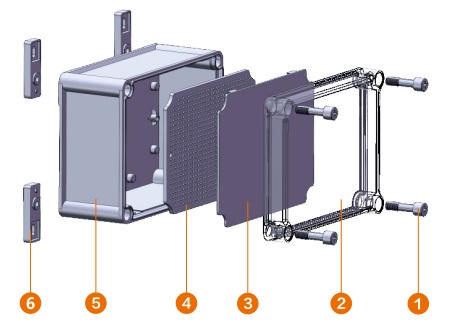

Internal structure: optional installation of base plates and baffles, supporting a variety of complete combination schemes, but also multiple product assembly combination

Fixing method: plastic fixing brackets and stainless steel screws

Standards: in compliance with IEC60529 and EN60309 standards, with protection levels reaching IP67/IP65 (assembly combination)

Product accessories can be installed in a variety of ways to meet the needs of customers to different degrees, can be used alone or assembled, can also be used in an size combination. in addition, according to special needs, such as appearance, size, combination number requirement, you can contact us for custom development.

Datos técnicos

Serial	Model	L	W	H	H1	H2	L1	W1
1	EKDB12-130-80-70	130	80	70	50	20	110	60
2	EKDB12T-130-80-70	130	80	70	50	20	110	60
3	EKDB12-200-150-75	200	150	75	51	24	180	130
4	EKDB12T-200-150-75			75	51	24	180	130
5	EKDB12-200-150-105			105	51	54	180	130
6	EKDB12T-200-150-105			105	51	54	180	130
7	EKDB12-200-150-100			100	76	24	180	130
8	EKDB12T-200-150-100			100	76	24	180	130
9	EKDB12-200-150-130S			130	76	54	180	130
10	EKDB12T-200-150-130S
11	EKDB12-200-150-130			130	106	24	180	130
12	EKDB12T-200-150-130
13	EKDB12-200-150-160			160	106	54	180	130
14	EKDB12T-200-150-160
15	EKDB12-250-150-100	250	150	100	76	24	230	130
16	EKDB12T-250-150-100
17	EKDB12-250-150-130S			130	76	54	230	130
18	EKDB12T-250-150-130S
19	EKDB12-250-150-130			130	106	24	230	130
20	EKDB12T-250-150-130
21	EKDB12-250-150-160			160	106	54	230	130
22	EKDB12T-250-150-160
23	EKDB12-250-200-100	250	200	100	76	24	230	180
24	EKDB12T-250-200-100
25	EKDB12-250-200-130S			130	76	54	230	180
26	EKDB12T-250-200-130S
27	EKDB12-250-200-130			130	106	24	230	180
28	EKDB12T-250-200-130
29	EKDB12-250-200-160			160	106	54	230	180
30	EKDB12T-250-200-160
31	EKDB12-300-200-100	300	200	100	76	24	280	180
32	EKDB12T-300-200-100	300	200	100	76	24	280	180
33	EKDB12-300-200-130S	300	200	130	76	54	280	180
34	EKDB12T-300-200-130S
35	EKDB12-300-200-130			130	106	24	280	180
36	EKDB12T-300-200-130
37	EKDB12-300-200-160			160	106	54	280	180
38	EKDB12T-300-200-160			160	106	54	280	180
